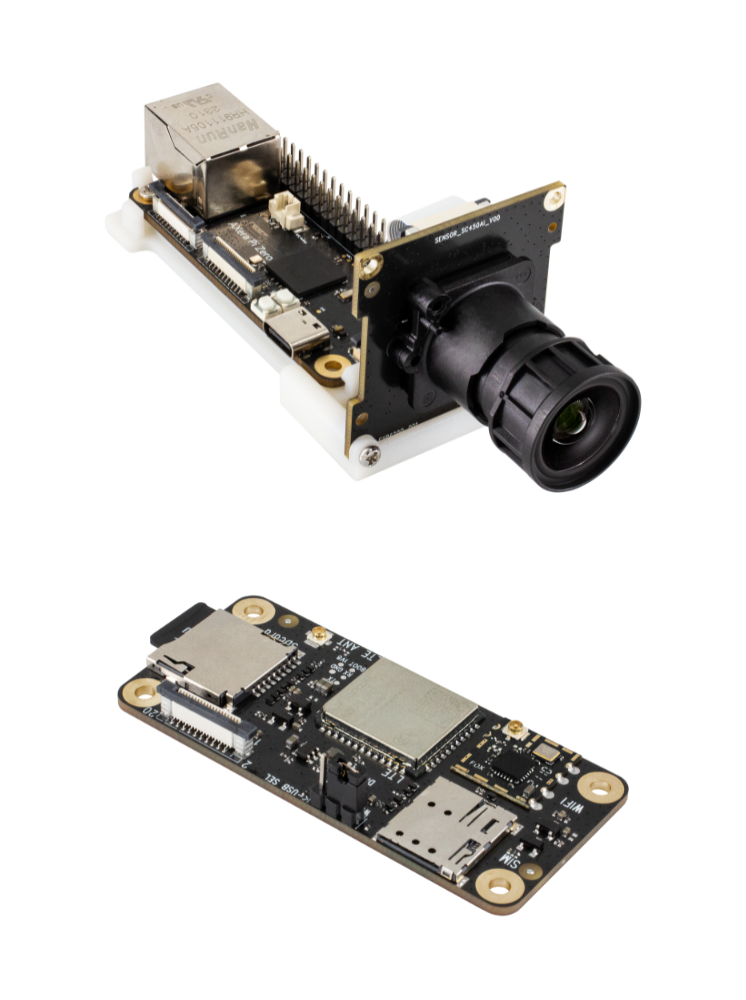

AXera-Pi Zero
Buying link：
https://item.taobao.com/item.htm?id=766038092712
（If you are unable to open the link to make a purchase, feel free to send us an email for assistance!）
E-mail：
service@expertprogramme.cn
Buying link：
https://item.taobao.com/item.htm?id=766038092712
（If you are unable to open the link to make a purchase, feel free to send us an email for assistance!）
E-mail：
service@expertprogramme.cn
SOC Chip: AX620Q
Processor: 2 × Arm Cortex-A53 @ 1.2GHz
ISP Capability:
Supports up to 5MP@30fps, AI-ISP & T-ISP,with
support for 3A, AI-3DNR, AIRLTM, dual-frame HDR,
image enhancement, defogging, fisheye correction
AI Capability: 9.6TOPs @ INT4, 2.4TOPs @ INT8
Operating System: Linux
Deep Learning Framework:Supports model deployment
for ONNX, PyTorch, Caffe, PaddlePaddle, etc.
VIDEO/IMAGE PROCESSING CAPABILITY：
Video Encoding Capability:H.264/H.265,
5MP@30fps+1080P@30fps+720P@30fps
Video Decoding Capability: H.264, 1080P@60fps
Image Encoding/Decoding Capability:JPEG,
Encoding 5MP@40fps, Decoding 1080P@60fps
Other Features:Supports CBR/VBR/AVBR/CVBR
multiple bitrate control modes, supports encoding with 8 ROIs
STANDARD CONFIGURATION：
Memory: 256MiB LPDDR4X (SIP)
Storage: 256MiB SPI NAND
INTERFACES:
CSI Camera Interface: 1 × MIPI CSI 4-lane
DSI Display Interface: 1 × MIPI DSI 4-lane
Network Interface: 1 × 10/100 RJ45 Ethernet port
External Interfaces: 1 × USB 2.0, RTC battery interface
GPIO Interfaces: GPIO × 22, including debug serial port, ADC × 1
Debug Interfaces: 2 × buttons (BOOT, RESET)
Power Interface: DC 5V (USB powered)
ENVIRONMENT:
Temperature Range: Operating Temperature: -40°C to 85°C
POWER CONSUMPTION:
Typical: 1.2W
DIMENSIONS:
Size: 65 × 30 mm
